PRODUCTS

C.C.E. focuses on the provision of product marking and handling solutions for a wide variety of industry sectors and for all sizes of component, from the smallest to the largest. Our objective is to provide our customers with a complete service, from concept through implementation and ongoing support.



Focusing on Hot-Stamping, Pad-Printing and Screen-Printing marking, C.C.E. has been providing customers with a comprehensive product marking service.

Each marking requirement is uniquely different and the C.C.E. process begins by designing a solution, in partnership with the customer, which will work reliably and cost-effectively.



Forty five years of accumulated expertise contributes to a complete turnkey solution, comprising a tailored press, the correct tooling, consumables and, where necessary, an automated handling system to integrate with the customer's manufacturing process. Training, ongoing support and maintenance are all part of the C.C.E. package.

HOT-STAMPING MACHINES



Hot-Stamping is a dry printing method of lithography in which predried ink or foils are transferred to a surface at high temperatures. The non-polluting method has diversified since its rise to prominence in the 19th century to include a variety of colors and processes.



Check here our range of Hot-Stamping Machines

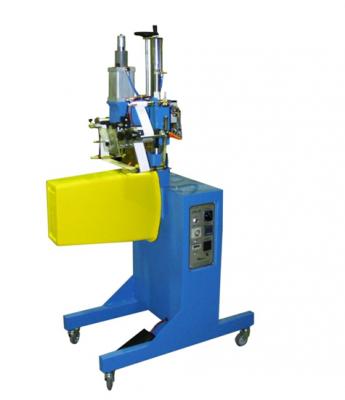

  • Nuno's GP 80

    for Plastic Containers



    Head Course (mm)                          50



    Output Compressed Air (Bar)       6/8



    Hydraulic Output (Bar)                    -



    Height (mm)                                  1700



    Weight (Kg)                                    400



    Electrical Tension (V~50 Hz)     220 + T



    Power Absorbed (Kw)                  1600



    Stamping Pressure (Ton)               0,8



    Blocks (mm)                               80 x 110



  • Nuno's GP 115

    for Plastic Containers

    Head Course (mm)                          80



    Output Compressed Air (Bar)       6/8



    Hydraulic Output (Bar)                    -



    Height (mm)                                  2400



    Weight (Kg)                                    450



    Electrical Tension (V~50 Hz)        220



    Power Absorbed (Kw)                     2



    Stamping Pressure (Ton)               1,2



    Blocks (mm)                               80 x 110

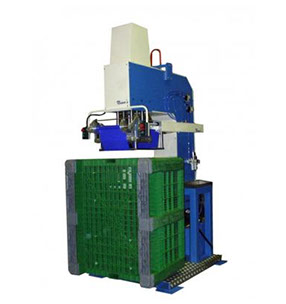

  • Nuno's GP 300

    for Plastic Containers

    Head Course (mm)                         150



    Output Compressed Air (Bar)       6/8



    Hydraulic Output (Bar)               20/70



    Height (mm)                                  2400



    Weight (Kg)                                   1380



    Electrical Tension (V~50 Hz)  3 x 380 N+T



    Power Absorbed (Kw)                     6



    Stamping Pressure (Ton)              1/10



    Blocks (mm)                              300 x 350



    Note: This machine can be manufacturated for numbering plastic containers. The numbering unit is alphanumeric, with characters of +/- 10 x 14 mm with manual and automatic function.

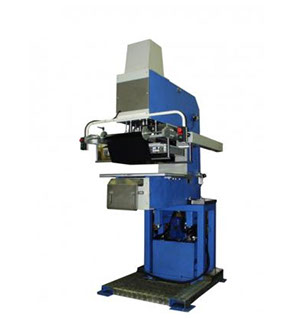

  • Nuno's GP 400

    for Plastic Containers

    Head Course (mm)                         150



    Output Compressed Air (Bar)       6/8



    Hydraulic Output (Bar)               20/70



    Height (mm)                                  2400



    Weight (Kg)                                   1380



    Electrical Tension (V~50 Hz)  3 x 380 N+T



    Power Absorbed (Kw)                     6



    Stamping Pressure (Ton)              1/10



    Blocks (mm)                              400 x 400

                                                      (400 x 730)

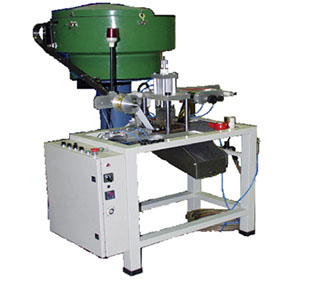

  • Nuno's GP 30-RT

    for Synthetic T-Corks

    Head Course (mm)                          40



    Output Compressed Air (Bar)        6



    Hydraulic Output (Bar)                    -



    Height (mm)                                  1600



    Weight (Kg)                                    100



    Electrical Tension (V~50 Hz)        220



    Power Absorbed (Kw)                    0,7



    Stamping Pressure (Ton)                0,3



    Blocks (mm)                                      -



  • Nuno's GP 30-RTL

    for Synthetic Cylindrical Corks

    Head Course (mm)                          40



    Output Compressed Air (Bar)        6



    Hydraulic Output (Bar)                    -



    Height (mm)                                  1600



    Weight (Kg)                                    100



    Electrical Tension (V~50 Hz)        220



    Power Absorbed (Kw)                    0,7



    Maximum Production (H) +/- 2.400/3.600



    Blocks (mm)                                      -



  • Nuno's GP 30-RT

    for Plastic Capsules

    Head Course (mm)                          40



    Output Compressed Air (Bar)        6



    Hydraulic Output (Bar)                    -



    Height (mm)                                  2400



    Weight (Kg)                                    450



    Electrical Tension (V~50 Hz)        220



    Power Absorbed (Kw)                     2



    Stamping Pressure (Ton)                0,3



    Production (H)                         2.000/5.000



  • Nuno's GP 30-Roto

    for High-Relief Plastic Capsules

    Head Course (mm)                          40



    Output Compressed Air (Bar)        6



    Hydraulic Output (Bar)                    -



    Height (mm)                                  1300



    Weight (Kg)                                    250



    Electrical Tension (V~50 Hz)        220



    Power Absorbed (Kw)                    1,5



    Stamping Pressure (Ton)                0,3



    Production (H)                         8.000/14.000

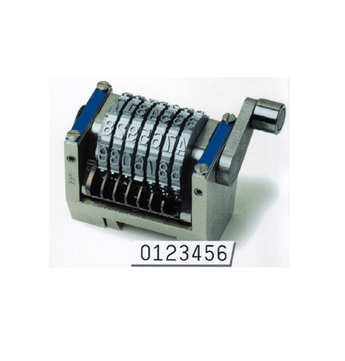

  • Nuno's Num

    Number Unit for Appliance on Hot-Stamping Machines

  • Nuno's GP 10 NUM

    Hot-Stamping Machine with Numbering Unit

    Head Course (mm)                          40



    Output Compressed Air (Bar)        6



    Hydraulic Output (Bar)                    -



    Height (mm)                                  1600



    Weight (Kg)                                    100



    Electrical Tension (V~50 Hz)        220



    Power Absorbed (Kw)                    0,7



    Stamping Pressure (Ton)                0,3



    Blocks (mm)                                      -



  • Nuno's GP 10

    Standard Hot-Stamping Machine

    Head Course (mm)                          40



    Output Compressed Air (Bar)        6



    Hydraulic Output (Bar)                    -



    Height (mm)                                  1600



    Weight (Kg)                                    100



    Electrical Tension (V~50 Hz)        220



    Power Absorbed (Kw)                    0,7



    Stamping Pressure (Ton)                0,3



    Blocks (mm)                                      -



  • Nuno's GP 15

    Standard Hot-Stamping Machine

    Head Course (mm)                          40



    Output Compressed Air (Bar)      6/8



    Hydraulic Output (Bar)                    -



    Height (mm)                                  1600



    Weight (Kg)                                    170



    Electrical Tension (V~50 Hz)        220



    Power Absorbed (Kw)                    0,8



    Stamping Pressure (Ton)                0,8



    Blocks (mm)                               110 x 80



  • Nuno's GP 20

    Standard Hot-Stamping Machine

    Head Course (mm)                          40



    Output Compressed Air (Bar)         6



    Hydraulic Output (Bar)                    -



    Height (mm)                                  1600



    Weight (Kg)                                    270



    Electrical Tension (V~50 Hz)        220



    Power Absorbed (Kw)                     1



    Stamping Pressure (Ton)                 1



    Blocks (mm)                               140 x 100



PAD-PRINTING MACHINES



Pad-Printing is a printing process that can transfer a 2-D image onto a 3-D object. This is accomplished using an indirect offset (gravure) printing process that involves an image being transferred from the cliché via a silicone pad onto a substrate.



Physical changes within the ink film both on the cliché and on the pad allow it to leave the etched image area in favor of adhering to the pad, and to subsequently release from the pad in favor of adhering to the substrate.



The unique properties of the silicone pad enable it to pick the image up from a flat plane and transfer it to a variety of surfaces, such as flat, cylindrical, spherical, compound angles, textures, concave, or convex surfaces.



Check here our range of Pad-Printing Machines



Nunos's OXA

Nuno's  KYA

Nuno´s OXA



The Nuno's OXA is the entry model offering you all the essential parts to start pad printing. It’s the most economic version of a pad printer, available in different cup sizes. Add more options to customize it fully to your needs.









- Manual feeding

- Pneumatic driven

- 1-2 Ink cups

- Production up to 1200 cycl/h

















For more informations please contact us... click here to contact us!

Nuno´s KYA



The Nuno's KYA is the fast & flexible version of a manual pad printing machine. Print up to 1800 pcs/h in 1 or 2 colours. Servo drive. 1 or 2 ink cups. Siemens compliance.











- Manual feeding

- Pneumatic driven

- 1-2 Ink cups

- Production up to 1800 cycl/h

















For more informations please contact us... click here to contact us!

SCREEN-PRINTING MACHINES



Screen-Printing is a printing technique whereby a mesh is used to transfer ink onto a substrate, except in areas made impermeable to the ink by a blocking stencil. A blade or squeegee is moved across the screen to fill the open mesh apertures with ink, and a reverse stroke then causes the screen to touch the substrate momentarily along a line of contact. This causes the ink to wet the substrate and be pulled out of the mesh apertures as the screen springs back after the blade has passed.



Check here our range of Screen-Printing Machines



Nunos's SER 259

Nuno's SER P 120/150

Peripheral Decoration

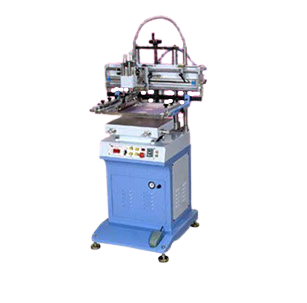

Nuno´s SER 259



Plane Printing Area (mm)       259 x 350  to

                                                  600 x 1.100



Maximum Screen (mm)           650 x 1.200



Maximum Speed (prt/min)             18



Output Compressed Air           6 l/m | 6 bar



Electrical Tension (V~50 Hz)  40 W 220 V







For more informations please contact us... click here to contact us!

Nuno´s SER 120/150   SER P120  SER P150



Peripheral Printing Area (mm)     120 diam x      150 diam x

                                                        200 mm           200 mm



Plane Printing Area (mm)                 -                      250 x 350



Maximum Screen (mm)                 230 x 450        400 x 600



Maximum Speed (prt/min)               18                       13



Output Compressed Air              6 l/m | 6 bar     6 l/m | 6 bar



Electrical Tension (V~50 Hz)       40 W 220 V     40 W 220 V



Dimensions                               820x700x1450 780x830x1500





For more informations please contact us... click here to contact us!

OTHER MACHINES



C.C.E. manufactures complementary equipments such as slitter for Hot-Stamping foils and Surface Treatment machines.



Check here our range of Slitters



Nuno's SLT800

Table Model

Nuno's SLT800

Floor Model

Nuno´s SLT Table Model



Power                                          0,5 CV | 0,3 KW  | 1,2 Amp



Cut (Length x Width)                       800mm x 480mts



Electrical Tension (V~50 Hz)        380 (220V Optional)



Weight (kg)                                                     83



Length (mm)                                                1.300



Height (mm)                                                1.200







For more informations please contact us... click here to contact us!

Nuno´s SLT Floor Model



Power                                          0,5 CV | 0,3 KW  | 1,2 Amp



Cut (Length x Width)                       800mm x 480mts



Electrical Tension (V~50 Hz)        380 (220V Optional)



Weight (kg)                                                     83



Length (mm)                                                1.300



Height (mm)                                                1.200







For more informations please contact us... click here to contact us!

Nuno's Automatic SB

Surface Treatment Machine for Synthetic Corks

Nuno´s Automatic SB



Maximum Capacity                            6.000 / 8.000 corks



Output Compressed Air (Bar)              6 Tube diam. 10

                                                          +/- 20 L of Air p/ Cycle



Electrical Tension (V~50 Hz)  220 AC / RNT / 15 A (3 x 2,5 mm2)



Elevators                                                               1



Optional                                        2nd Out-put elevator + vibrator

                                                          with pre-selection counter















For more informations please contact us... click here to contact us!
